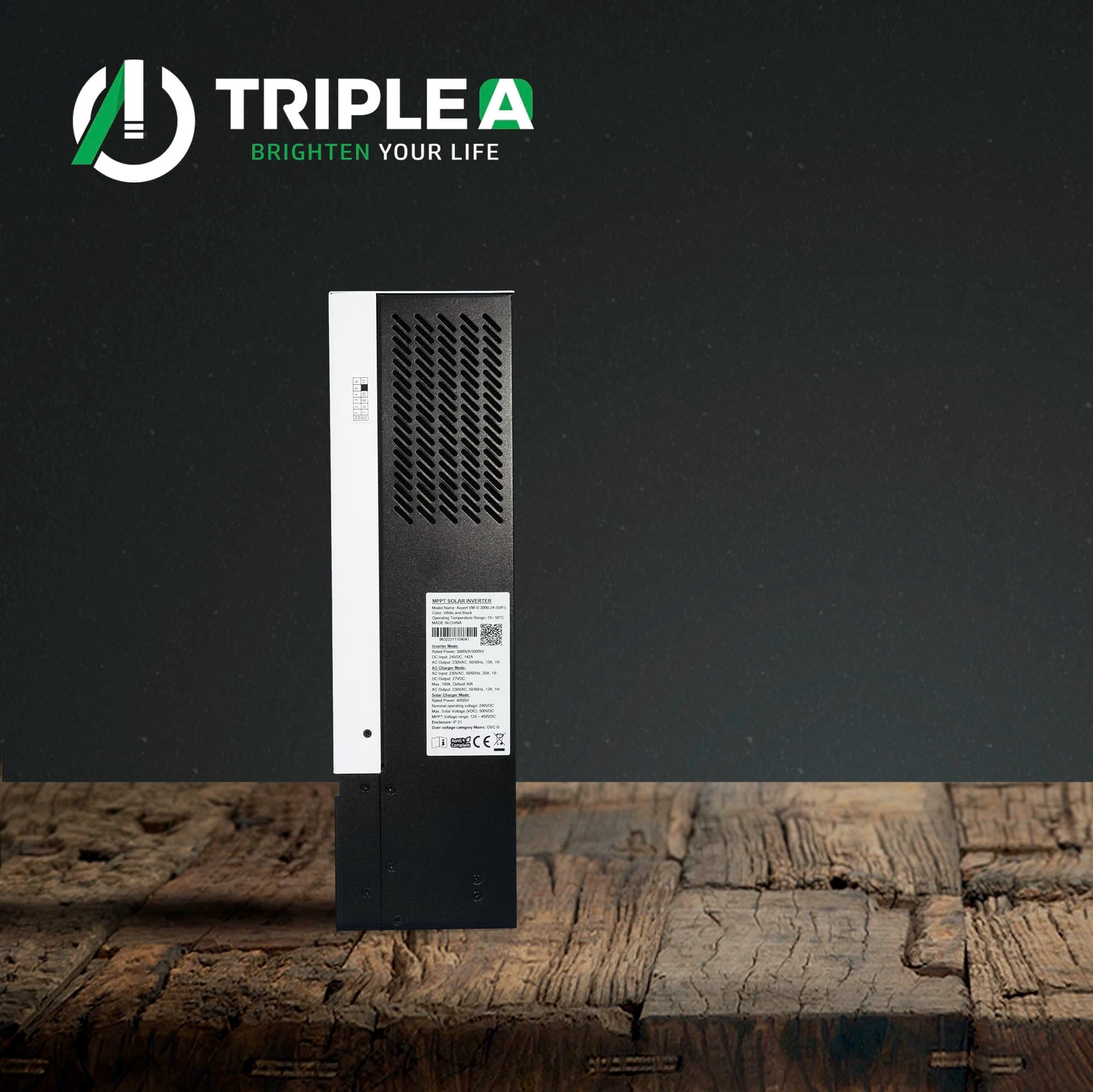

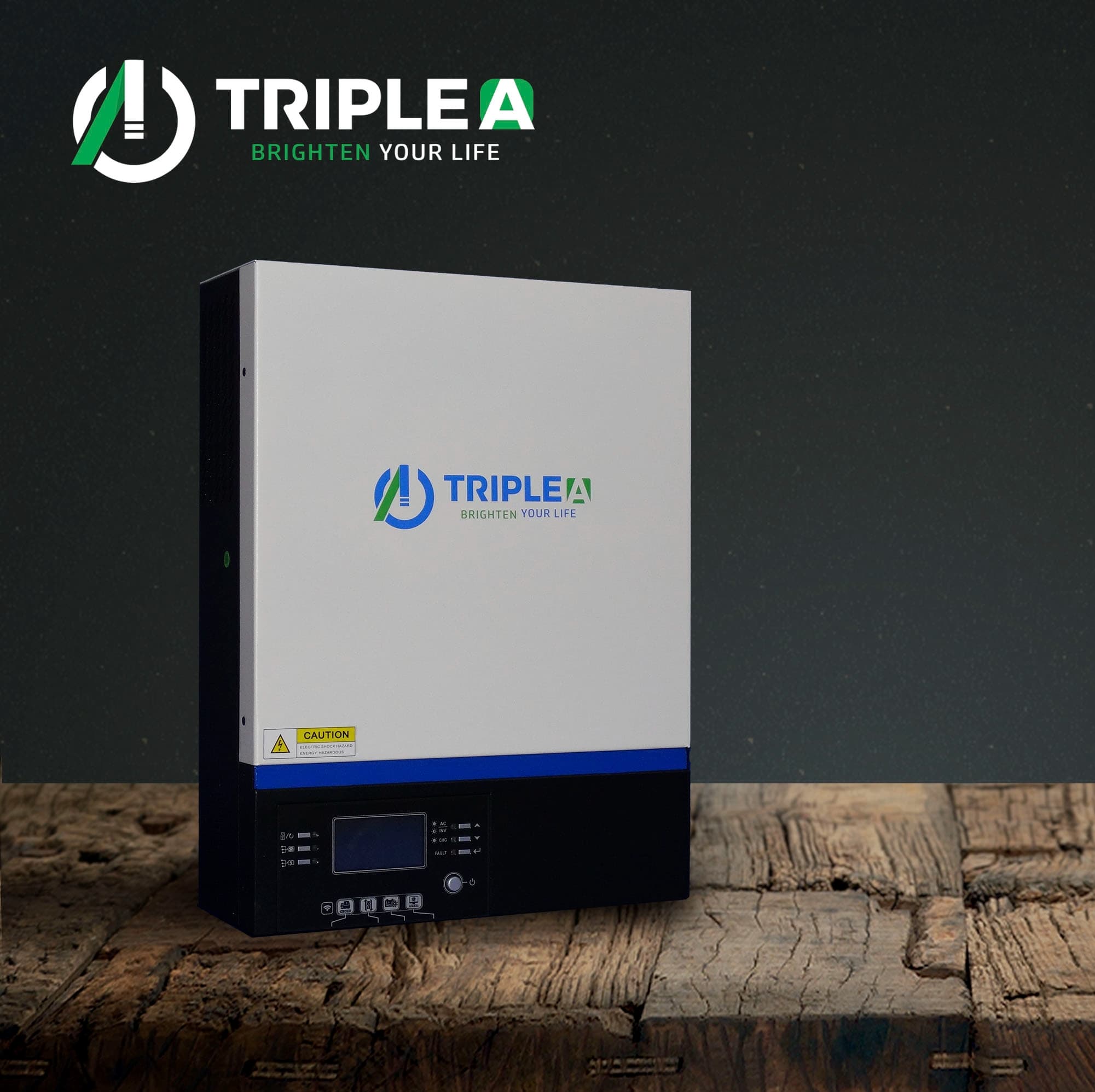

TRIPLE A AXPERT VMIII 5K
Share
| تحديد | |
|---|---|
System Voltage: 48 | Max Panels Number: 0 |
Rated Power: 5000 | BMS Connection: Yes |
Wifi: Yes | AC Charger: 100 |
Parallel: No | Moveable Screen: Yes |
MPPT Array Power: 5000 | Min MPPT Voltage Range: 120 |
Max MPPT Voltage Range: 450 | voltage 230 VAC |
Voltage Range ( for Home Appliances) 90-280 VAC | voltage range ( for personal computers) 170-280 VAC |
AC voltage regulation 230 VAC +-5% | surge power 10000 VA |
transfer time (for Home Appliances) 20 MS | transfer time (for personal computers) 15 MS |
wave form جيبية نقية | battery voltage 48 VDC |
solar charger type MPPT | Maximum PV Array open circuit voltage 500 VDC |
Maximum solar charge current 100 A | Maximum charge current 100 A |
Dimension / mm 115*300*400 | weight / kg 10 |
communication interface USB,RS232,RS485,BLUETOOTH,DRY-CONTACT | |
