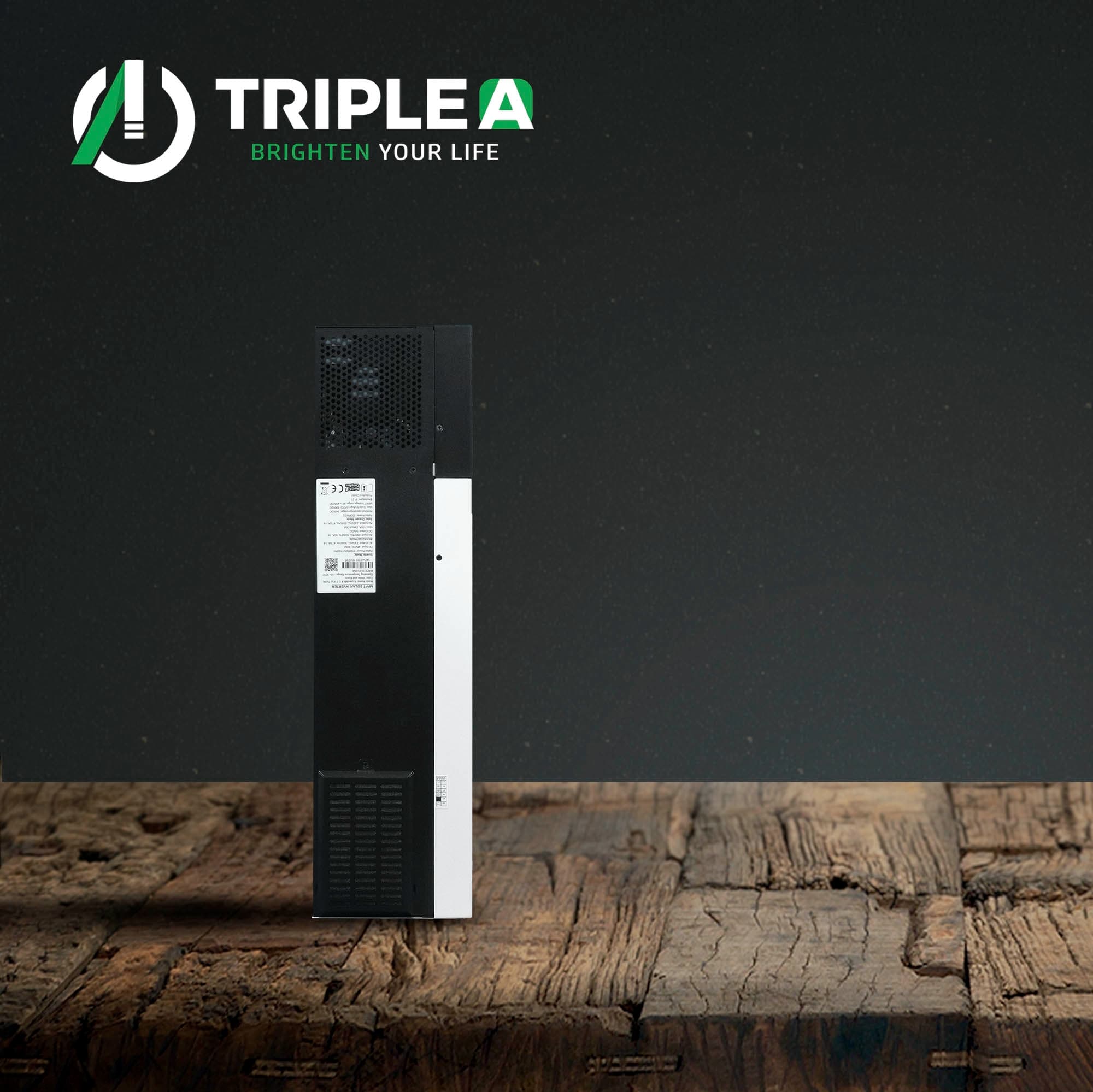

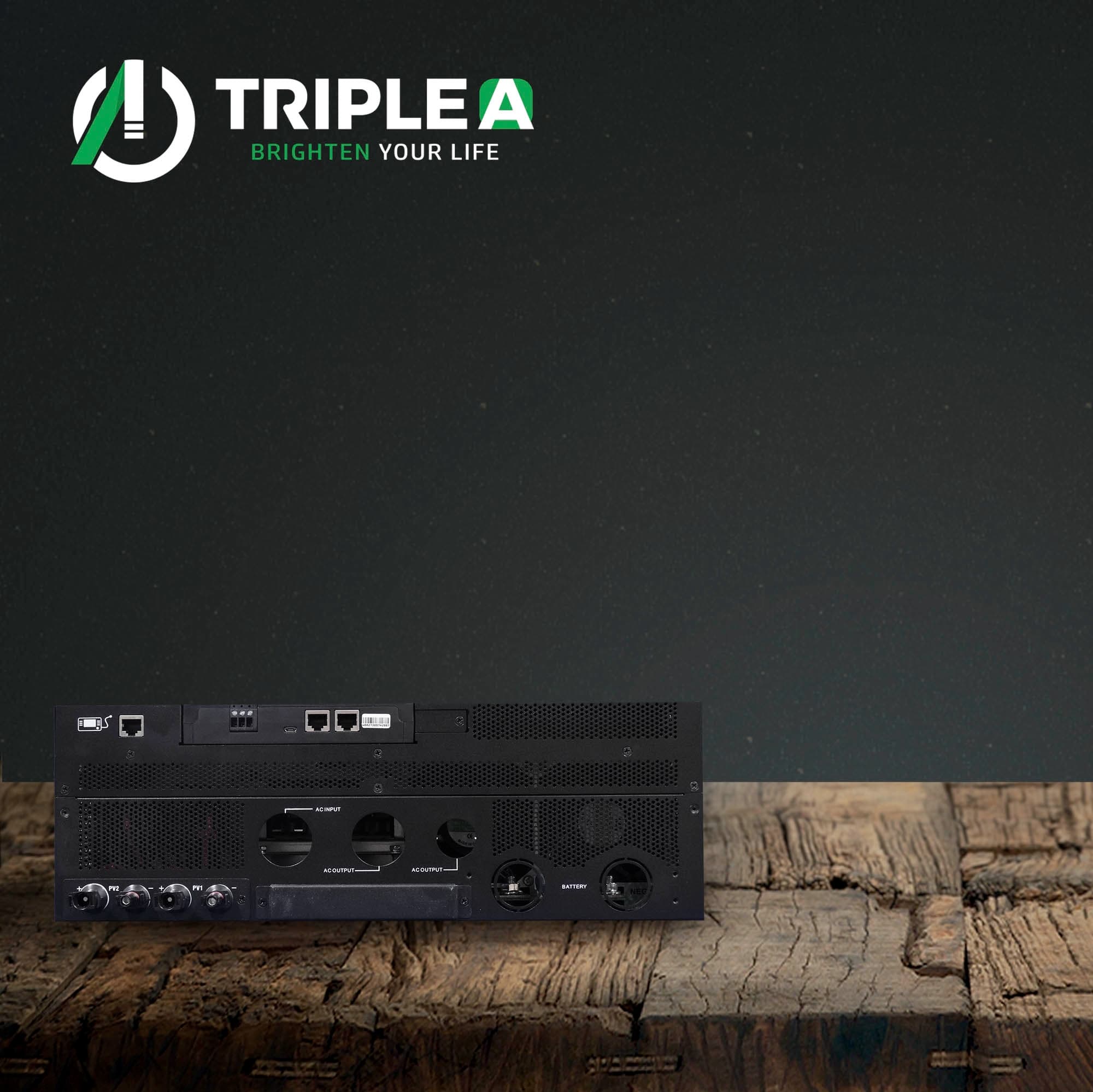

TRIPLE A AXPERT MAX 11K TWIN
Share
| تحديد | |
|---|---|
System Voltage: 48 | Max Panels Number: 0 |
Rated Power: 11000 | BMS Connection: Yes |
Wifi: Yes | AC Charger: 150 |
Parallel: Yes | Moveable Screen: Yes |
MPPT Array Power: 11000 | Min MPPT Voltage Range: 90 |
Max MPPT Voltage Range: 450 | parallel capability Up to 6 Units |
voltage 230 VAC | Voltage Range ( for Home Appliances) 90-280 VAC |
voltage range ( for personal computers) 170-280 VAC | AC voltage regulation 230 VAC +-5% |
surge power 22000 VA | transfer time (for Home Appliances) 20 MS |
transfer time (for personal computers) 10 MS | wave form جيبية نقية |
battery voltage 48 VDC | solar charger type MPPT |
Maximum PV Array open circuit voltage 500 VDC | Maximum solar input current 27A*2(MAX 40A) |
Maximum solar charge current 150 A | Maximum charge current 150 A |
Dimension / mm 147.4*432.5*553.6 | weight / kg 18.4 |
communication interface RS232,USB,WIFI,RS485,DRY-CONTACT | |
