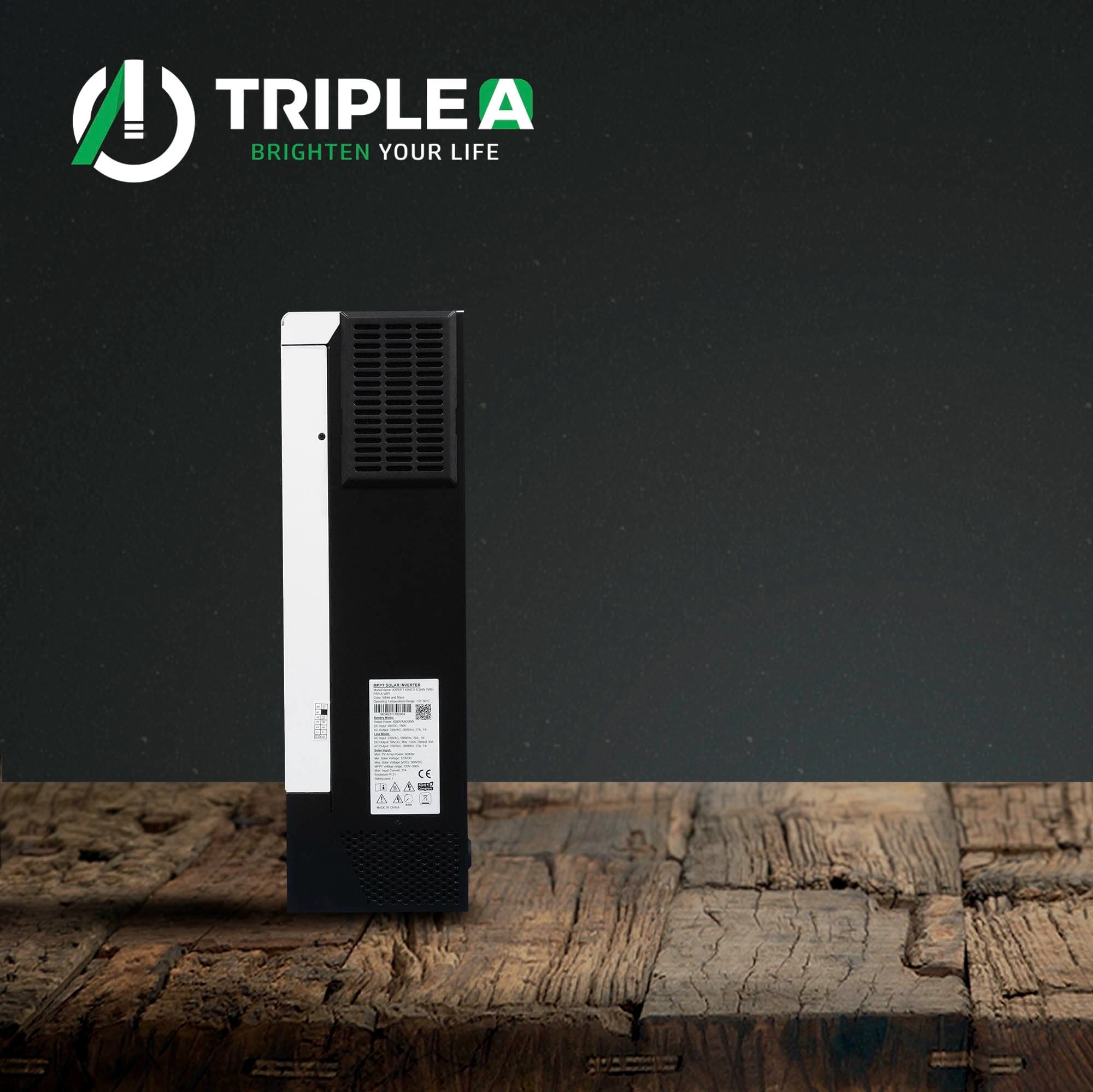

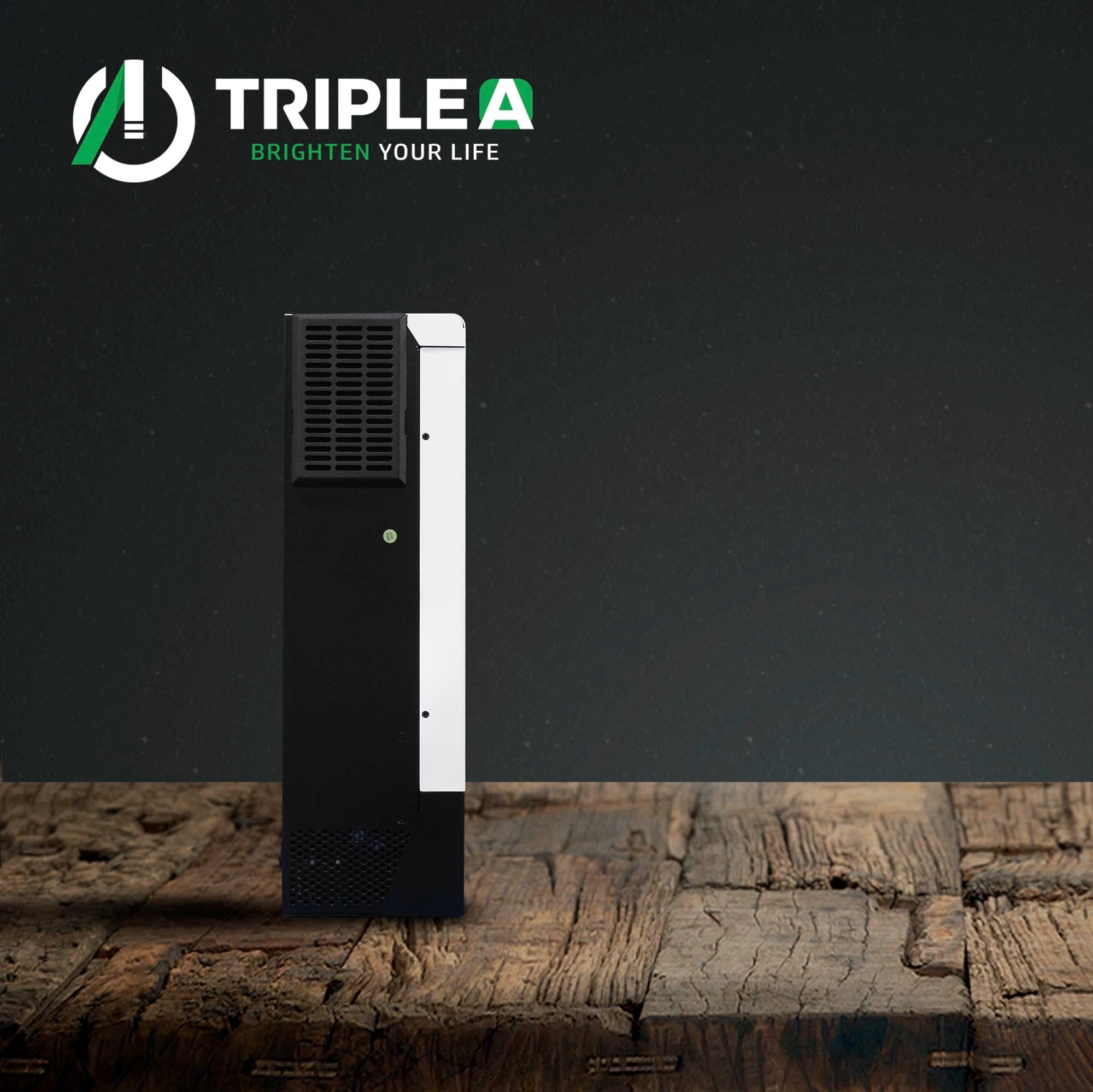

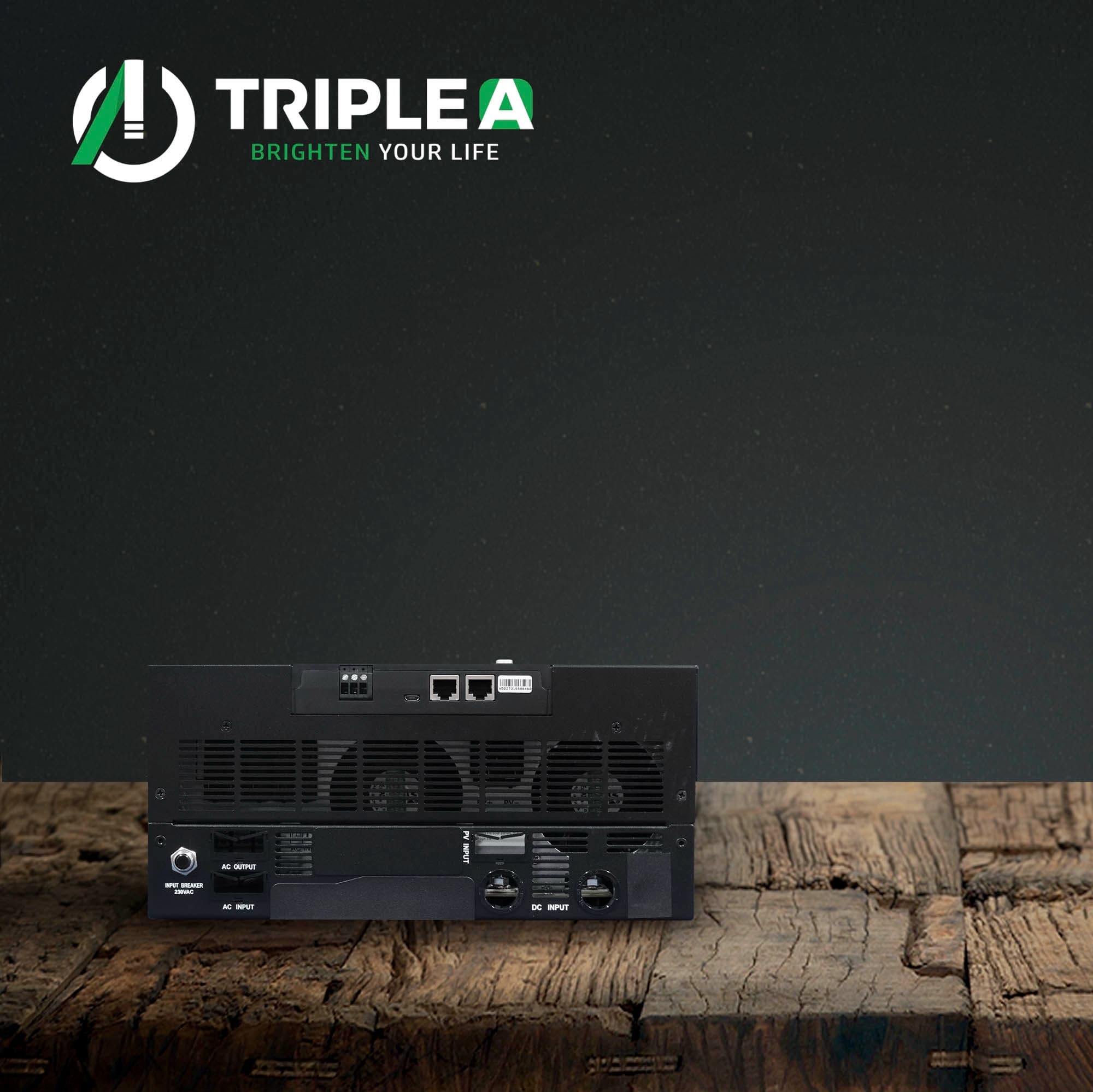

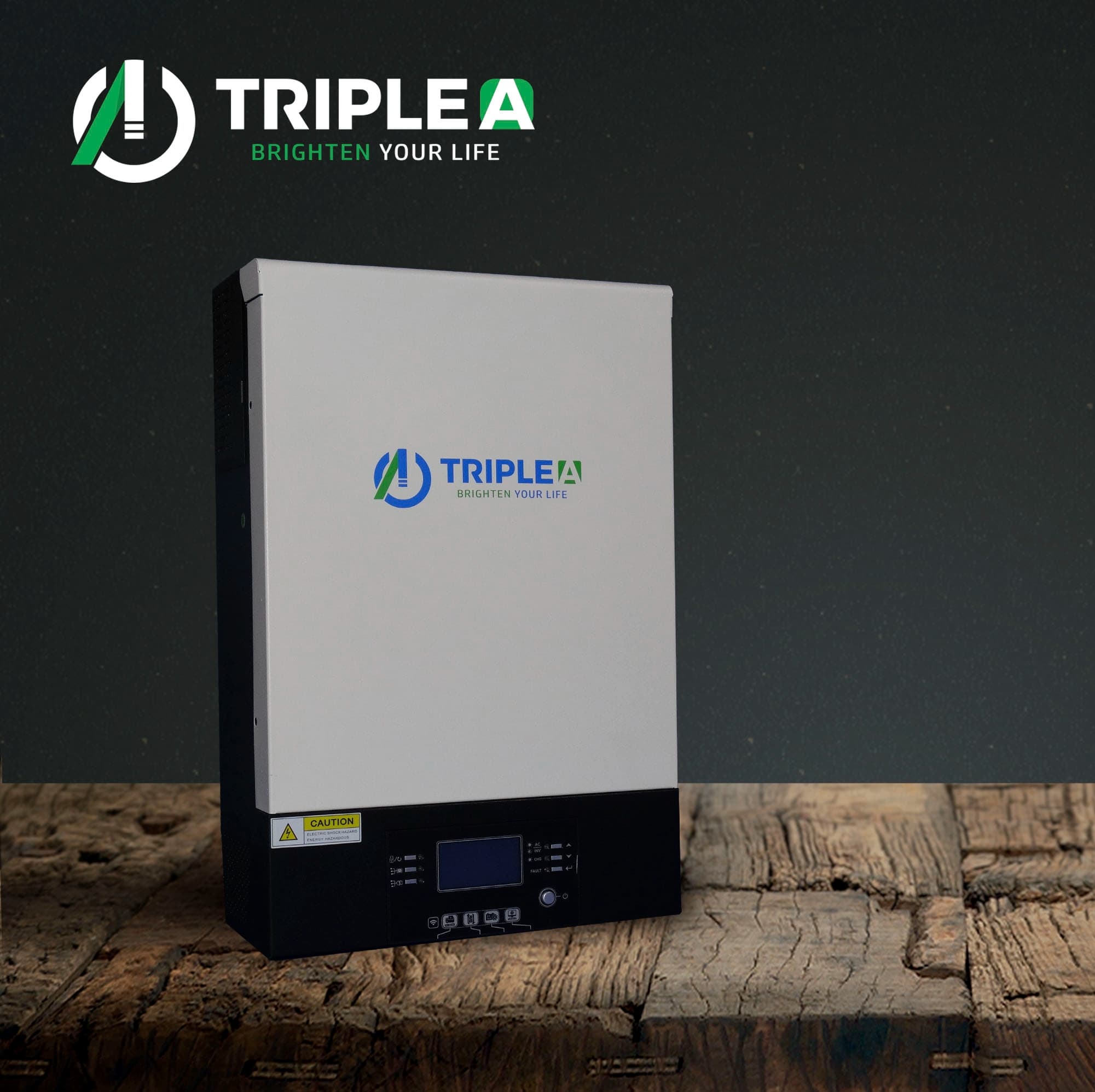

TRIPLE A AXPERT 6.2K KING II TWIN
Share
| تحديد | |
|---|---|
System Voltage: 48 | Max Panels Number: 0 |
Rated Power: 6200 | BMS Connection: Yes |
Wifi: Yes | AC Charger: 120 |
Parallel: Yes | Moveable Screen: Yes |
MPPT Array Power: 6000 | Min MPPT Voltage Range: 120 |
Max MPPT Voltage Range: 430 | parallel capability UP to 9 Units |
voltage 230 VAC | voltage range 110-280 VAC |
AC voltage regulation 230 VAC +-5% | wave form جيبية نقية |
battery voltage 40-66 VDC | solar charger type MPPT |
Maximum PV Array open circuit voltage 500 VDC | Maximum solar charge current 120 A |
Maximum charge current 120 A | Dimension / mm 140*295*468 |
weight / kg 12 | communication interface RS232,USB,DRY-CONTACT,WIFI,RS485 |
